Din order

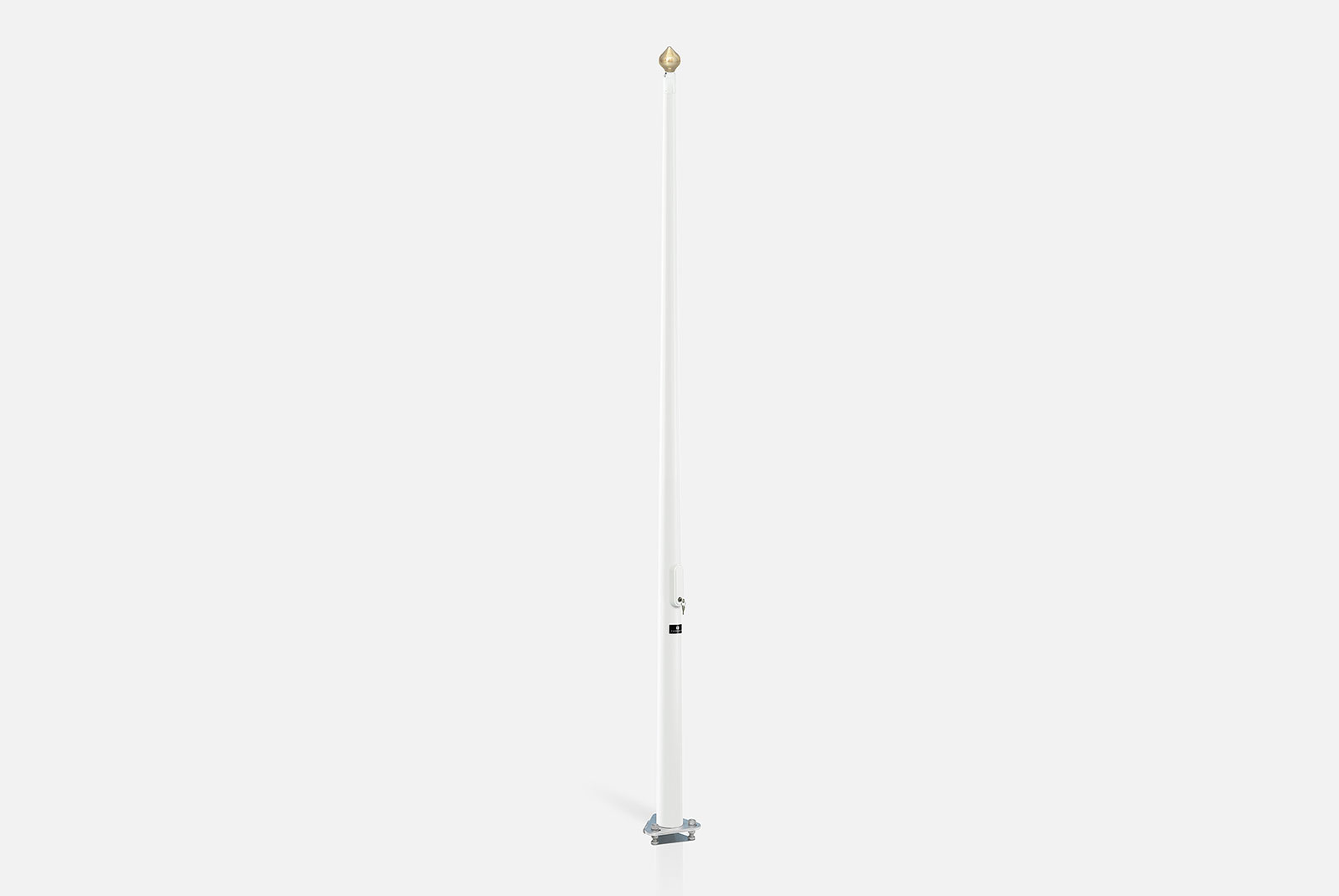

Flagpole Signature Internal Halyard

SKU: see technical data

Flagpole Signature is made from long lasting fiberglass reinforced polyester. This maintenance-free material combines guaranteed durability and low weight with a brilliant, clean finish.

Technical Data
SKUSIC20
Height20’
Top diameter2.6”
Butt diameter4.5”
Finial size5”
Halyard length48’
Flash collar diameter14”
Weight38 lb.
Hardware Kit weight20 lb.
Shipping weight58 lb.
Standard flag size (CAN)27” x 54”
Standard flag size (US)3’ x 5’
Maximum flag size (CAN)36” x 72”
Maximum flag size (US)4’ x 6’
Translated wind strength*288 km/h

*) Unflagged
SKUSIC25
Height25’
Top diameter2.6”
Butt diameter4.5”
Finial size5”
Halyard length58’
Flash collar diameter14”
Weight44 lb.
Hardware Kit weight20 lb.
Shipping weight64 lb.
Standard flag size (CAN)36” x 72”
Standard flag size (US)4’ x 6’
Maximum flag size (CAN)36” x 72”
Maximum flag size (US)5’ x 8’
Translated wind strength*288 km/h

*) Unflagged
SKUSIC30
Height30’
Top diameter2.6”
Butt diameter4.5”
Finial size5”
Halyard length68’
Flash collar diameter14”
Weight55 lb.
Hardware Kit weight21 lb.
Shipping weight76 lb.
Standard flag size (CAN)45” x 90”
Standard flag size (US)5’ x 8’
Maximum flag size (CAN)54” x 108”
Maximum flag size (US)6’ x 10’
Translated wind strength*176 km/h

*) Unflagged
SKUSIC35
Height35’
Top diameter2.6”
Butt diameter5.5”
Finial size6”
Halyard length78’
Flash collar diameter14”
Weight77 lb.
Hardware Kit weight21 lb.
Shipping weight98 lb.
Standard flag size (CAN)54” x 108”
Standard flag size (US)5’ x 8’
Maximum flag size (CAN)60” x 120”
Maximum flag size (US)6’ x 10’
Translated wind strength*234 km/h

*) Unflagged
SKUSIC40
Height40’
Top diameter2.6”
Butt diameter5.5”
Finial size6”
Halyard length88’
Flash collar diameter14”
Weight91 lb.
Hardware Kit weight22 lb.
Shipping weight113 lb.
Standard flag size (CAN)60” x 120”
Standard flag size (US)6’ x 10’
Maximum flag size (CAN)72” x 144”
Maximum flag size (US)8’ x 12’
Translated wind strength*173 km/h

*) Unflagged
Download
Projects

Price in CAD

From $1 150.00

20 ft$1,150.00
25 ft$1,325.00
30 ft$1,425.00
35 ft$1,775.00
40 ft$1,975.00

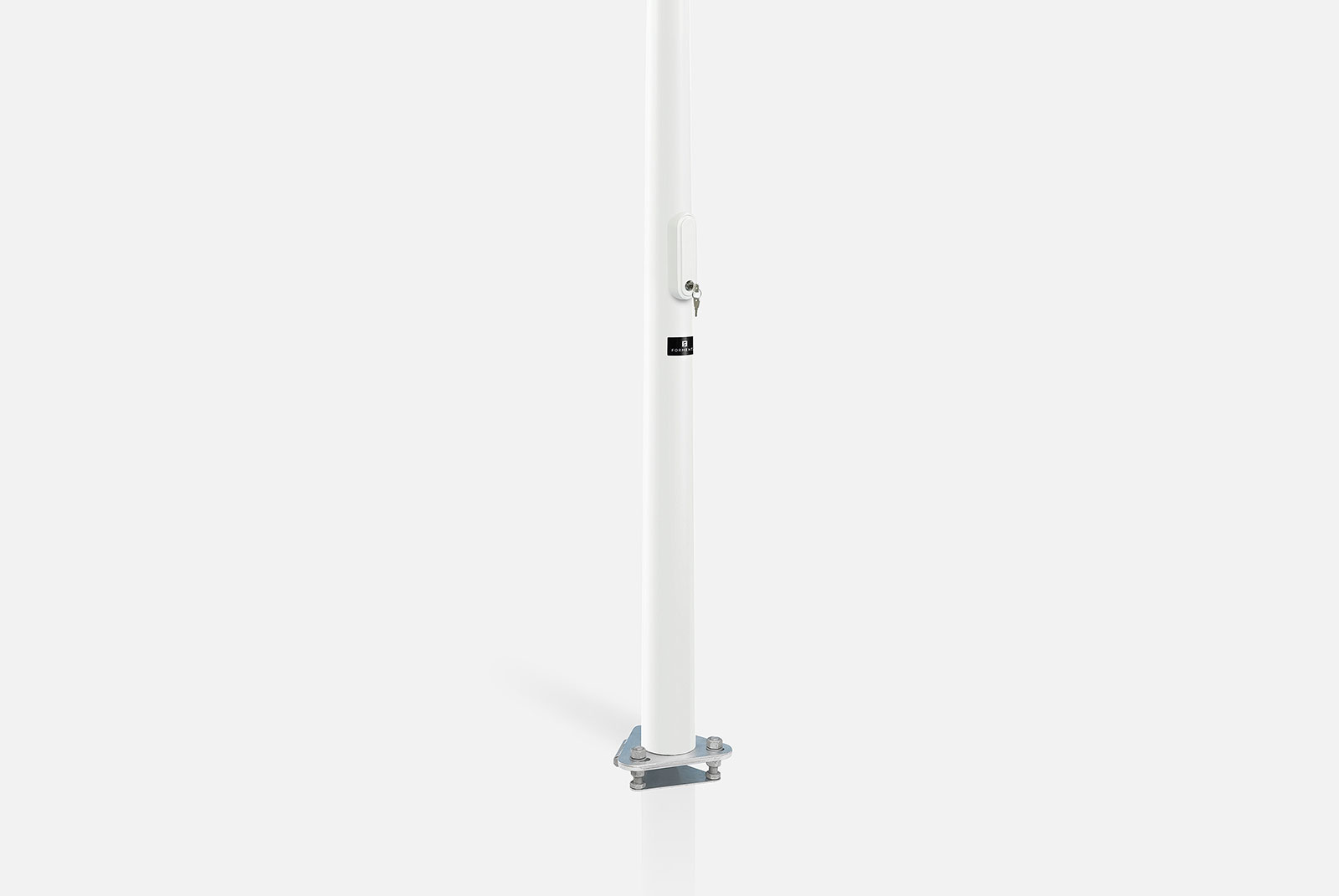

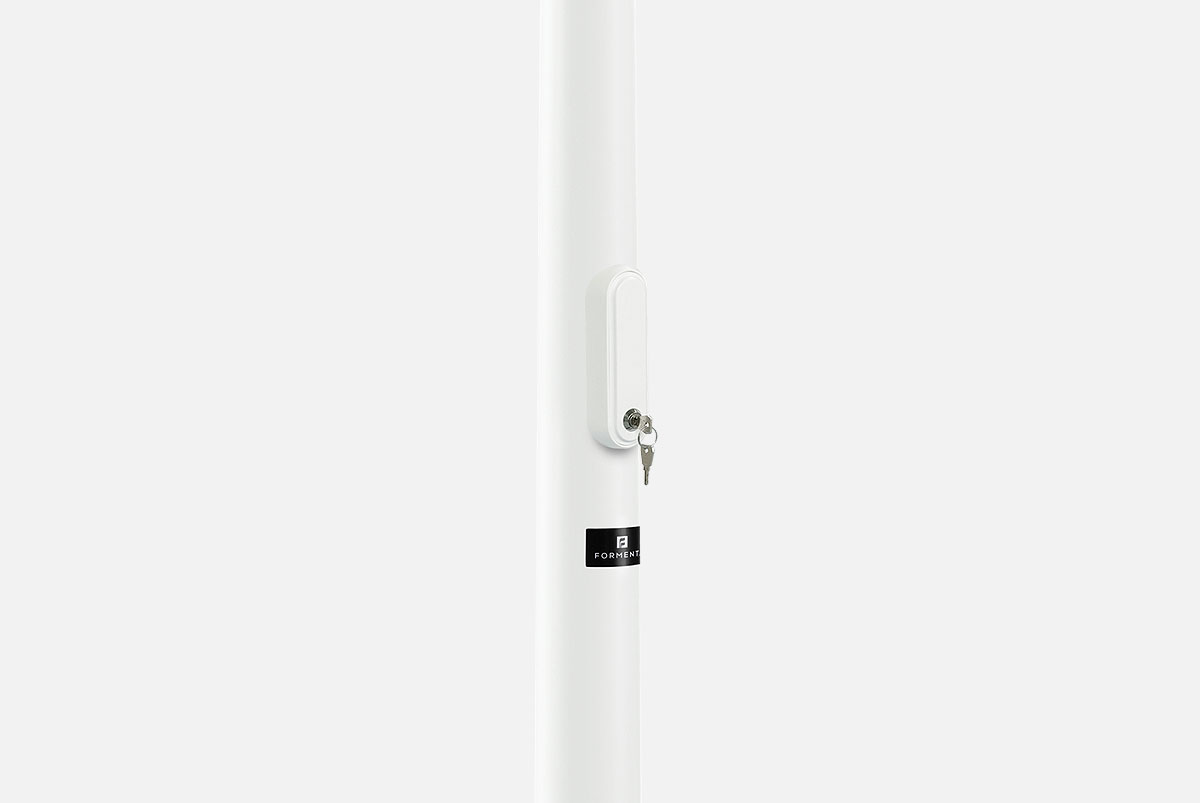

The Internal Halyard System neatly tucks the rope on the inside of a pole for raising and lowering of the flag. Accessed through a locking door compartment inside the shaft, the ’Internal Locking Door’ provides additional security from theft and vandalism.

Flagpole Signature Internal Halyard comes complete with

  • EasyTilt™ Base: Hot-dip galvanized tilting hinge base
  • Revolving brass acorn finial
  • Internally mounted halyard
  • Counterweight
  • Keys
  • Plastic clips (for easy attachment of flag or pennant)
  • Stop ball
  • Installation manual

Choosing flagpole length

Our general recommendation is that a third of the flagpole, or 10–13 ft, should stand above the related building.

Flagpole installation

Flagpole Signature is easily installed with our hot-dip galvanized tilting hinge base. Read more about how to install a flagpole.
